Engine Recommendations and Specifications
The engine bay will accept the 289-302-351 Ford Windsor small block engine. The
configuration or performance options of these engines is determined by the customer. The
power outputs can be from a very mild 275 hp 302 to a 750 hp NASCAR engine. The
exhaust system is custom fabricated 1 3/4 OD primaries with slip fit connection to the
collector and muffler/secondaries.

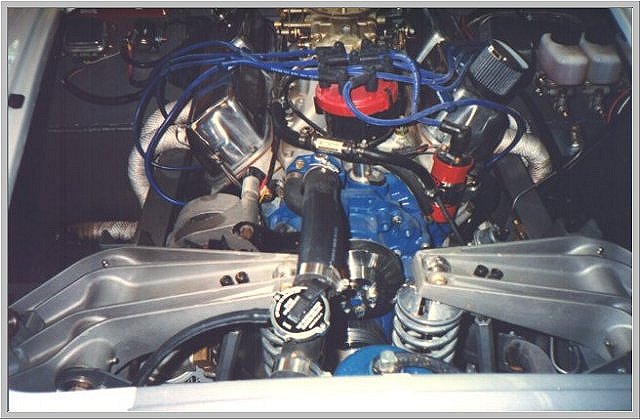

Ford Crate 302 Installation shown above.

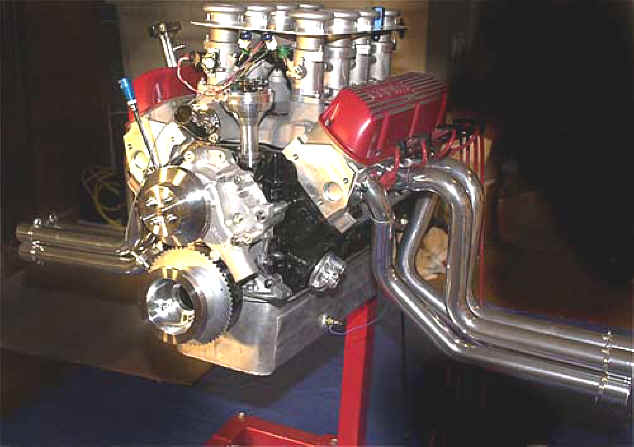

Scott
and Jay Torberg's 408 TWM/Electromotive TEC-II Injected
Motor.
With standard JBL headers.
Visit their site for more details.
Photo courtesy Jay Torberg.
Engine Compartment
Oiling System
This chassis is designed to accept either a Canton wet sump oil pan or a dry sump system
such as Weaver etc. A fabricated 2.5 gal. Alloy dry sump tank can be located on the
passenger side forward footwell. This does not diminish passenger foot room. Oil cooler
mounting is forward in location provided in Bodywork.
Gearbox & Differential
The chassis will accept either a Ford T-5 or TREMEC gearbox. The rear recommended ratios
are 3.55 or 3.73 for road use and 4.10 for competition use. The gearbox
recommendation is the Ford Motorsports T-5 or Tremec TKO with the close ratio gears.
Ratios and speeds in gears are as follows:
RPM @60mph | 2272 | 2500 | ||
Speed @6000 RPM. | 3.73 rear end | 4.10 rear end | ||
Gear | Ratio | M.P.H. | M.P.H. | |
1st. | 2.95 | 44.7 mph | 38.7 mph | |
2nd. | 1.94 | 67 | 58.8 | |
3rd. | 1.34 | 98 | 85.2 | |
4th. | 1.001 | 131 | 114 | |
5th. | .80 | 164.9 | 142 |
Bellhousing, Flywheel & Clutch
The standard Ford T-5 bellhousing, steel billet flywheel and performance clutch assembly is
recommended for road use. For competition use the Tilton LGC Bell housing as well as a
Tilton 8 inch alloy flywheel and Borg & Beck twin plate clutch are recommended.
Cooling
The radiator is front mounted on a tubular subframe which also has mounts for an oil
cooler. The water radiator is a Aluminum cross-flow type with a 20X22 core section. The
oil cooler is customer supplied to match engine requirements. For road use a
thermostatically controlled electric fan is mounted.
